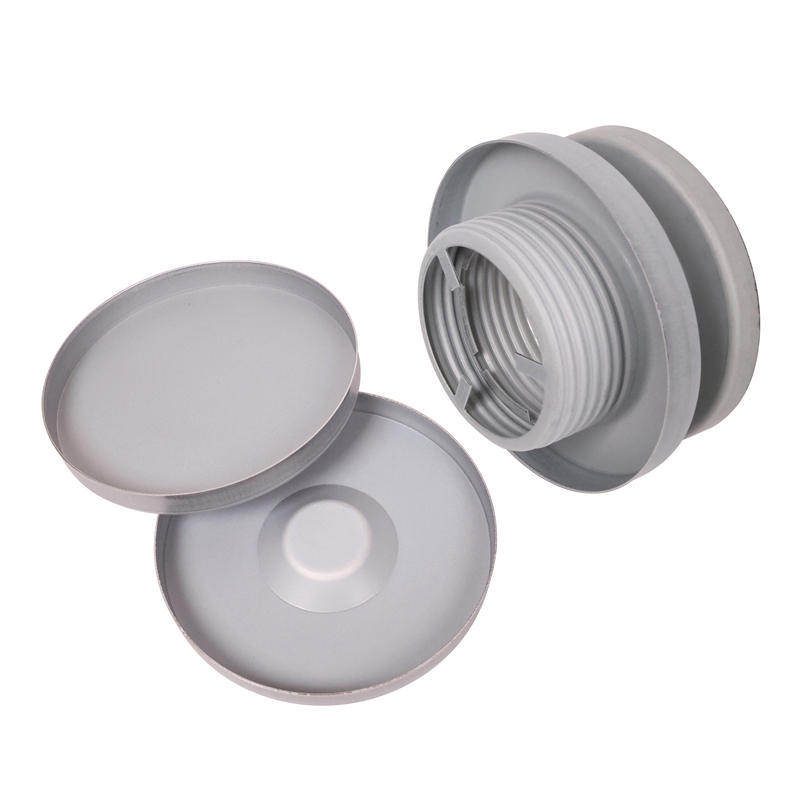

Threaded End Cover

Overview

Place of Origin:	Jiangsu China
Brand Name:	HONSTAR
Model Number:	Outside diameter x Inside diameter
Certification:

Minimum Order Quantity:	50 PCS
Price:
Packaging Details:	Cartons, Film Packing, Wooden Cases
Delivery Time:	3-7 Days
Payment Terms:	T/T
Supply Ability:	10000 PCS

Description:

Thread design enhance the strength

The outer strap,suits to be used in pulse cleaning application

Different names for products：The external thread is also called the screw upper cover (installed on the filter cartridge), and the internal thread is also called the screw joint (installed on the machine).

This product is made of 304/316 stainless steel plate, fingerprint resistant plate (galvanized plate), and general hot-dip galvanized plate as raw materials. After stamping and stretching, it is then made by threading and rolling.

Applications:

The product is used in the threaded filter cartridge and other filter elements, using the structure of internal and external threads, easy to install, first the matching threaded upper end cover and bottom cover installed on the filter cartridge, and then screw the threaded joint end cover up, in order to achieve the role of fixing the filter element.

Specifications:

Picture number	Remark	Product picture

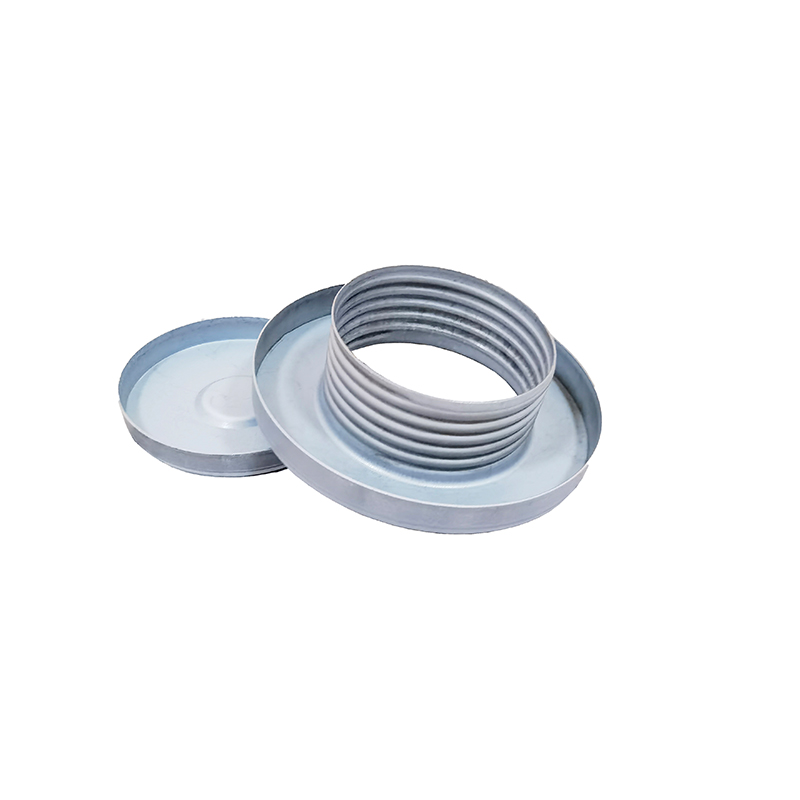

01	Two-piece（External thread + bottom cover）

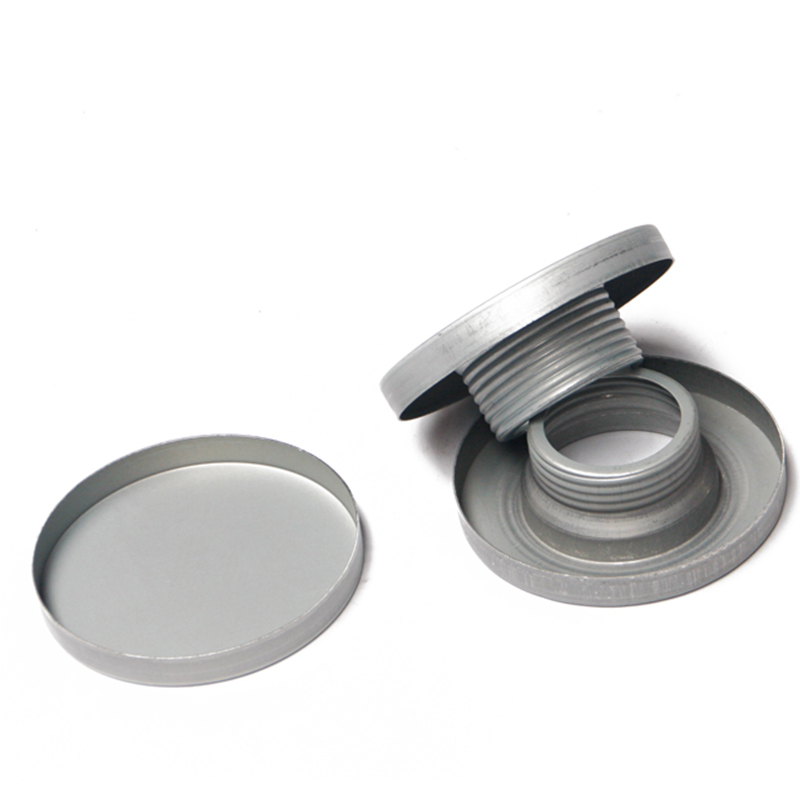

02	Three-piece set（External thread + internal thread + bottom cap）

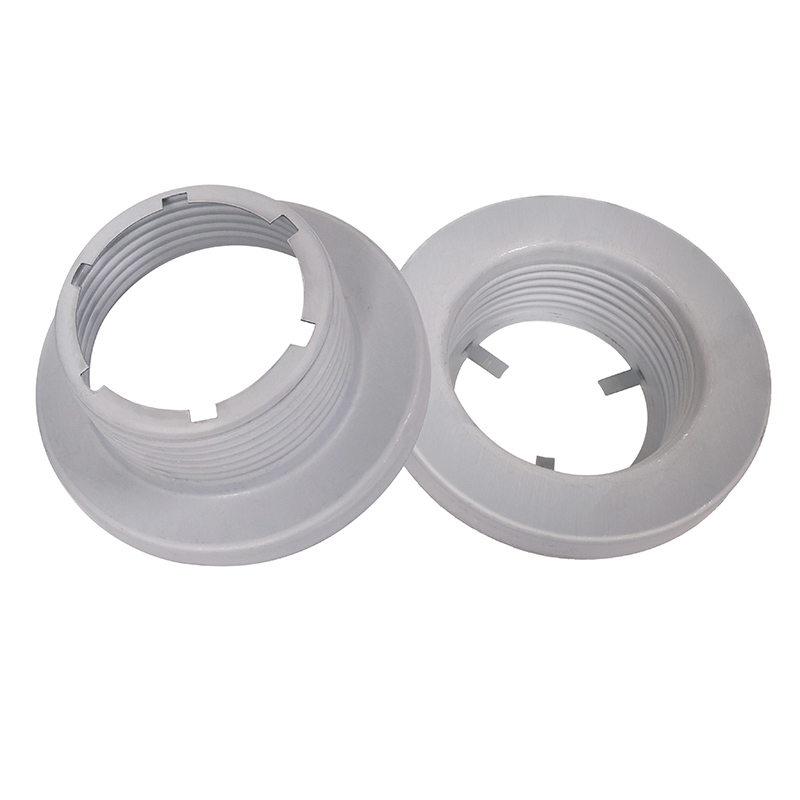

03	Two-piece with teeth

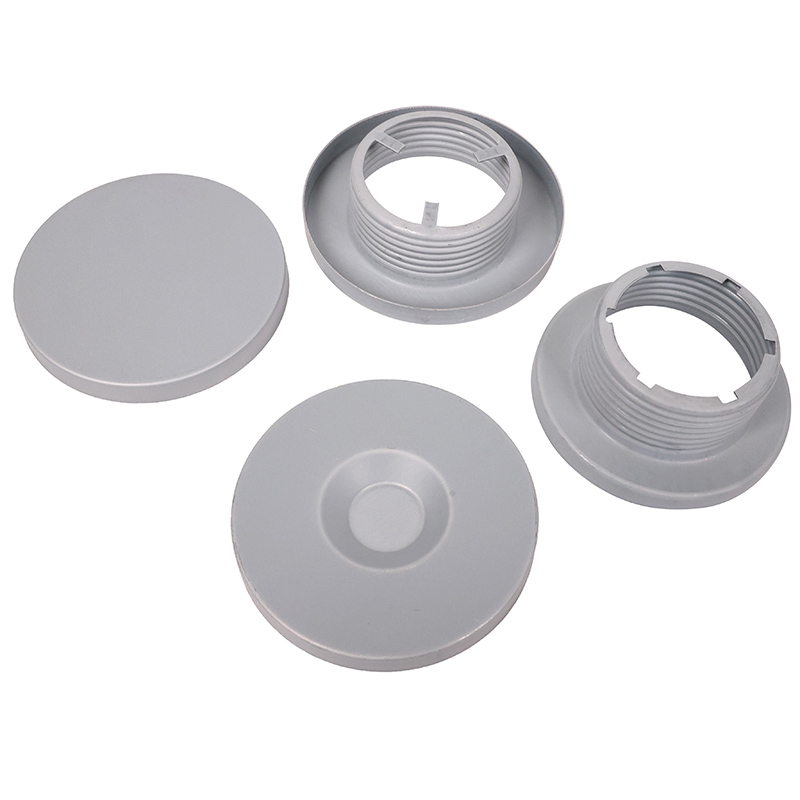

04	Three-piece set with teeth

Product name	Outside Diameter x Inside Diameter (unit:mm)	Remark
Rotary screw cap	115x60	Two-piece
Rotary screw cap	118x58	Two-piece
Rotary screw cap	120x72	Three-piece set
Rotary screw cap	120x73	Three-piece set
Rotary screw cap	120x74	Three-piece set/regular/with teeth
Rotary screw cap	127.5x100	Three pieces set side height 25
Rotary screw cap	146x80	Three-piece set
Rotary screw cap	150x80	Three-piece set
Rotary screw cap	150x98	Two-piece
Rotary screw cap	152x100	Three-piece set
Rotary screw cap	160x100	Three-piece set
Rotary screw cap	200x135	Three-piece set
Rotary screw cap	275x175	two-piece
Rotary screw cap	300x215	Three-piece set with teeth
Rotary screw cap	324x215	Three-piece set with teeth
Rotary screw cap	h100x72+Screw thread

Material：304/316 stainless steel, fingerprint resistant (electric galvanizing) and general hot dip galvanizing

Form factor: Conventional/toothed(Other specifications can be customized)

Competitive Advantage:

Dust removal equipment can be used in different industrial fields

High quality sheet materials are used

The installation and disassembly of product accessories are simple and convenient

Long service life, strong and durable, strong corrosion resistance

Material, color ,specifications, size ,thickness can be customized.
