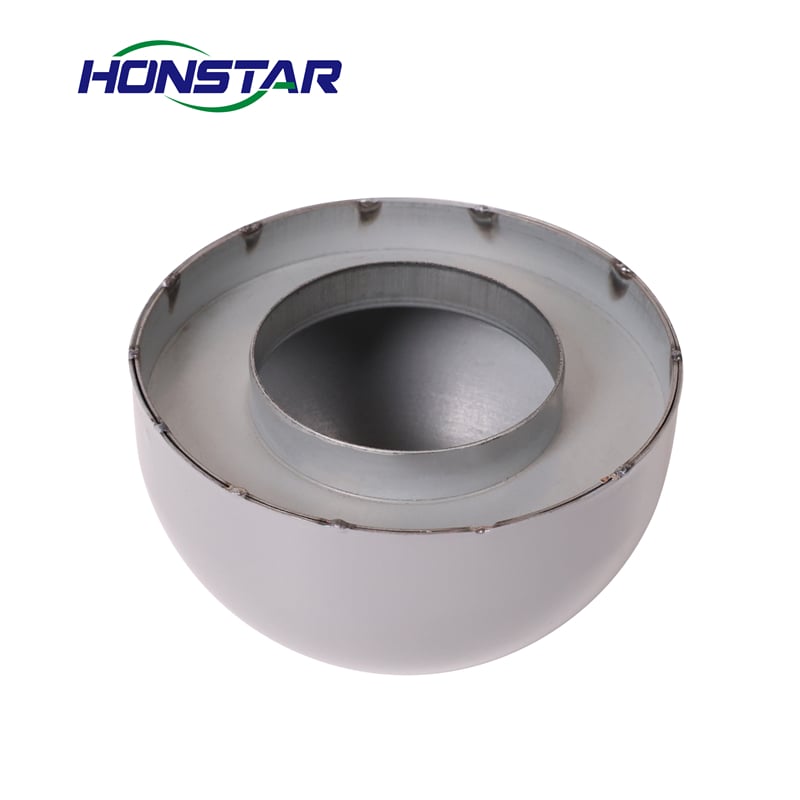

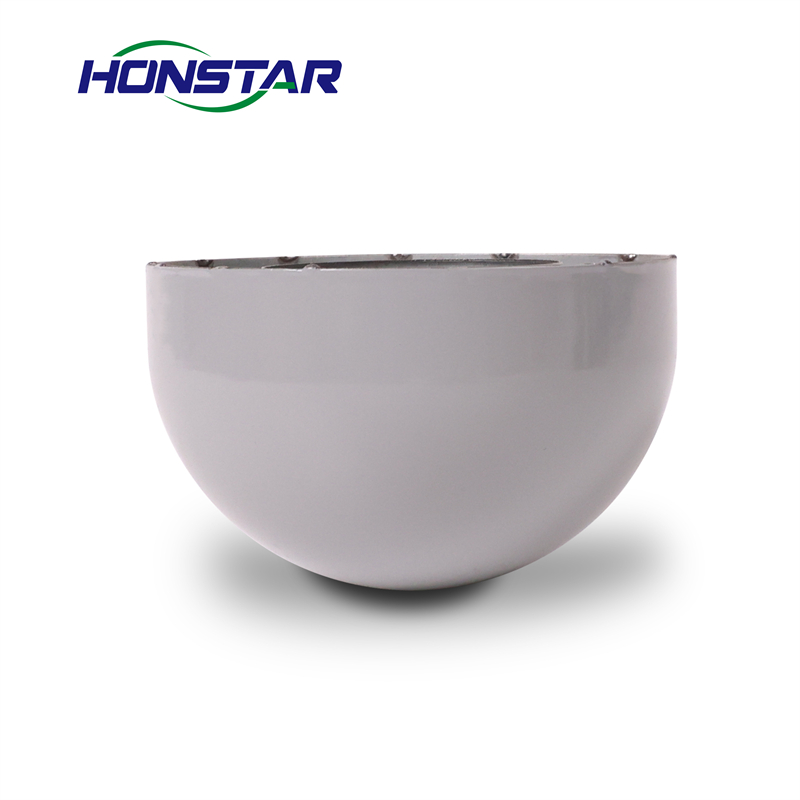

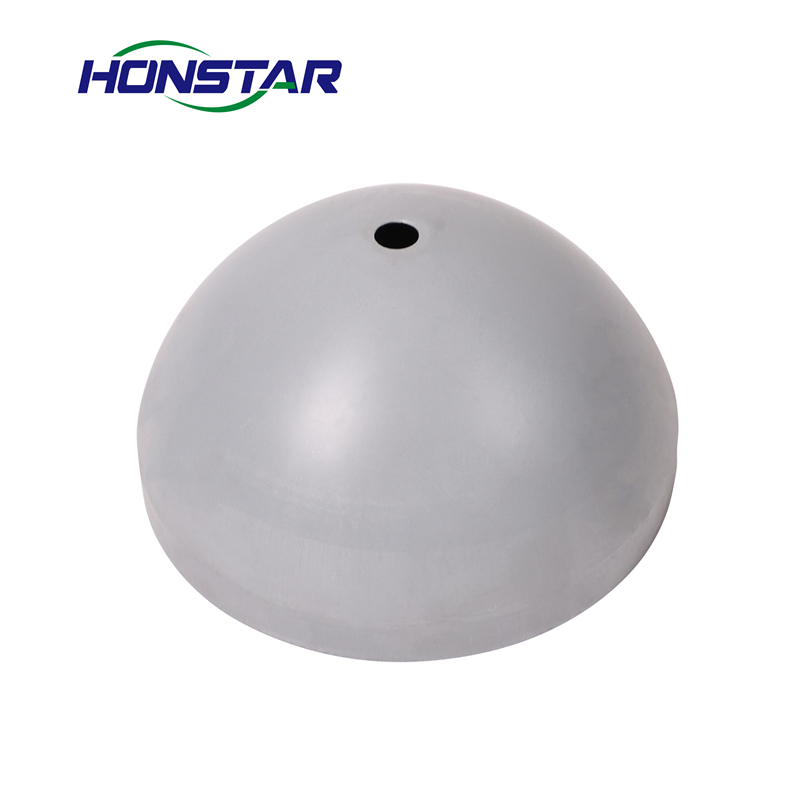

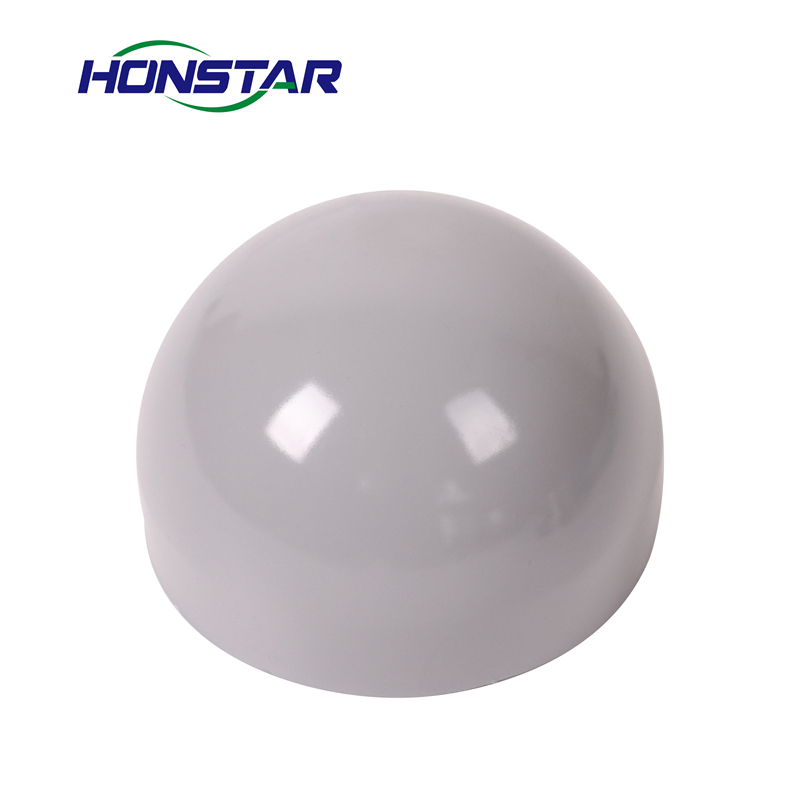

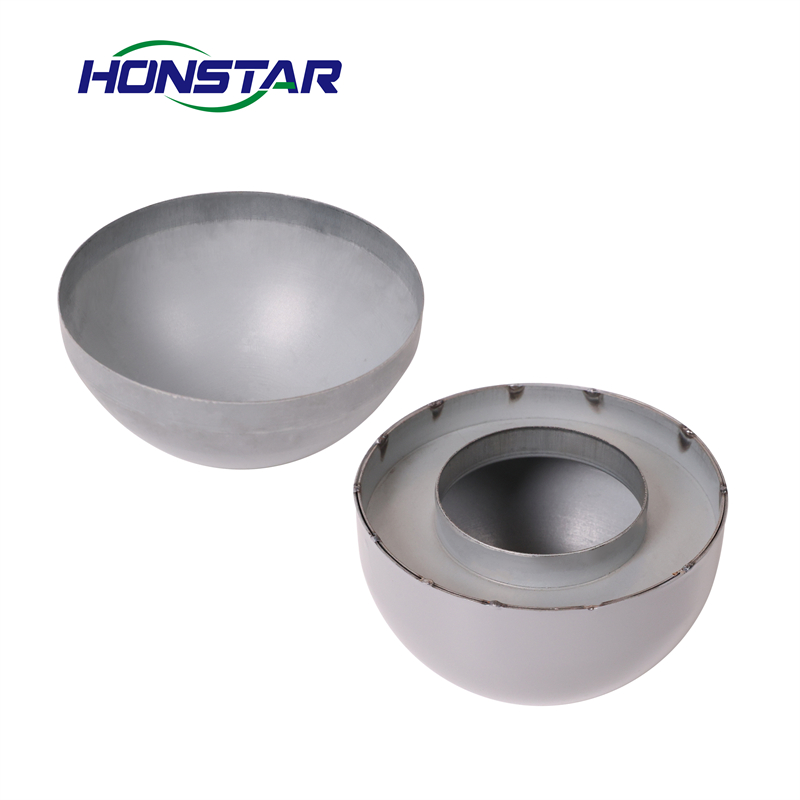

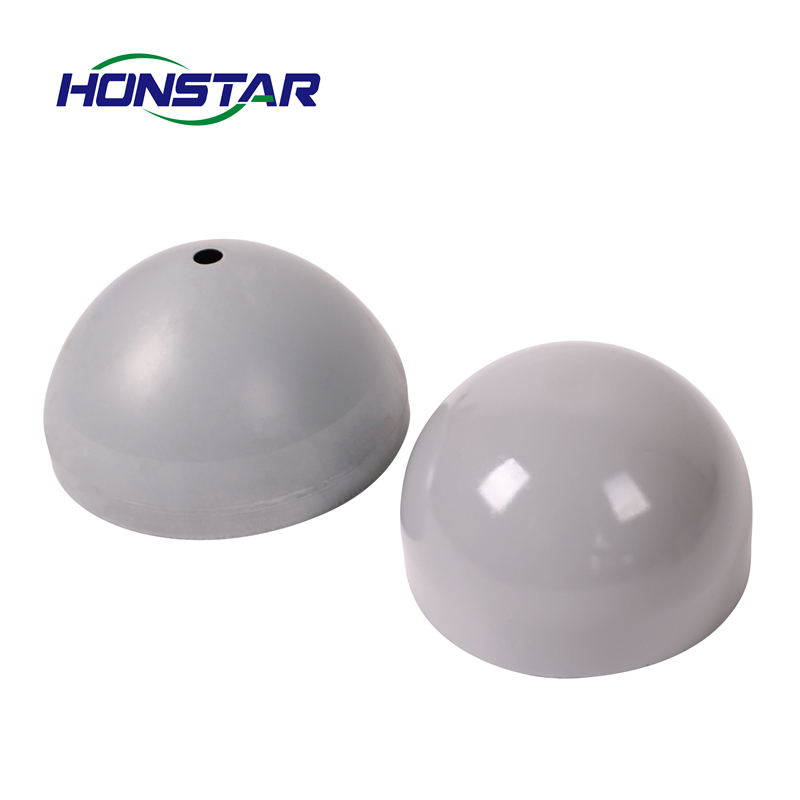

Half Round Ball Filter Cover
The metal filter end cover is a component that plays a key role in the structure of the filter
- Overview
- Related Products
Overview
The metal filter element end cap is mainly used to close the two ends of the filter element, which plays a role in protecting the internal structure of the filter element, fixing the shape of the filter element and ensuring that the filter medium can work normally.
Features
(1) Good corrosion resistance
(2) Stable and reliable quality
(3) Easy installation and long-term maintenance
Specification
| Type | Product Name |
OD (mm) |
ID (mm) |
T (mm) |
Material |
 |
Half Round Ball | Ø105 | Ø60 | 0.6 | Galvanizing |
 |
Conical Cover | Ø126 | / | 0.6 | Galvanizing |
| Ø160 | / | 0.6 |
Application
(1) Industrial Filtration
Used for filtering crude oil, lubricating oil, etc. Pharmaceutical industry filtration, filtration of raw materials, intermediates, and finished products in drug production, to ensure the quality of drugs; Food and beverage industry filtration, such as filtering juice, beer, etc., to remove impurities and sediments.
(2) Environmental Protection
For example, filter dust, pollen, smoke and other particles in the air purifier to improve indoor air quality. In water treatment, it is used as a filter medium to filter suspended solids in water, some heavy metal ions and other pollutants.
(3) Automotive Industry
It is used in the fuel filter, oil filter and air filter of the car to ensure the normal operation of the car engine, filter impurities in the fuel, metal chips in the oil and dust in the air.
