Overview
Place of Origin: | Jiangsu China |
Brand Name: | HONSTAR |
Model Number: | Outside Diameter x Rib Mouth x Inside Diameter Diameter Of The Bar |
Certification: |
Minimum Order Quantity: | 50 PCS |
Price: | |
Packaging Details: | Cartons, Film packing, Wooden Cases |
Delivery Time: | 3-7 Days |
Payment Terms: | T/T |
Supply Ability: | 10000 PCS |
Description:
Different names of products:
Fold type long filter plate/step in type plate
Common specifications: 133, 162, 166 flower plate
Slide rod installation,make the installation convenient and fast
Top open ,bottom closed
Material:Fingerprint resistant, galvanized (blue and white zinc), 304 stainless steel
Thickness:0.8mm(Other thicknesses can be customized)
Collocation: rubber ring/cloth bag ring
Option:With rubber gasket

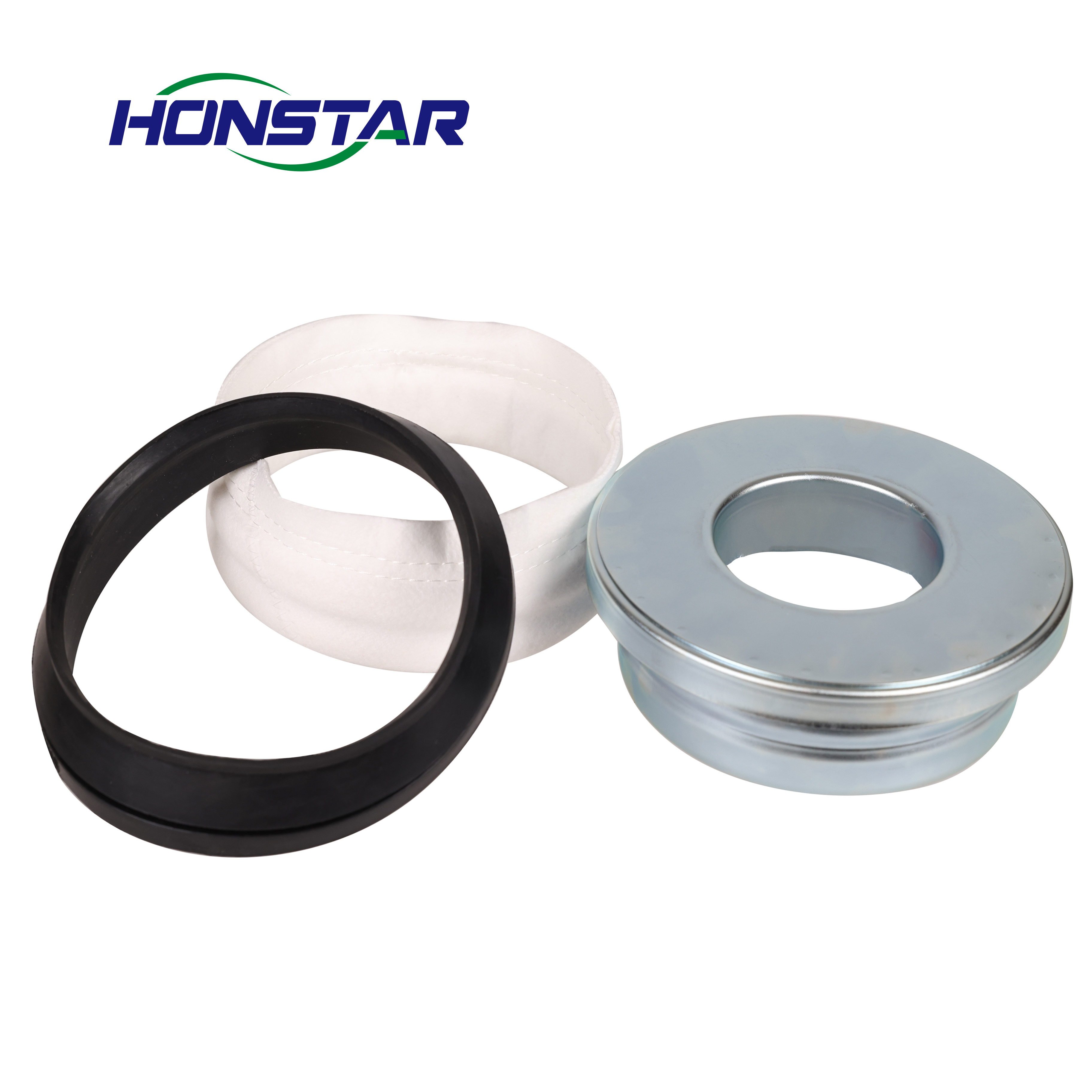

Bag head/rubber ring (EPDM)
Flower board set
Flower board matching cloth bag head, rubber ring
The bag head is set on the flower plate end cover, the bag head can also be applied to the bag, the ring is made of high-quality watch strip and concave sleeve rubber combination processing, there are two colors of white/black, the use of the ring elastic expansion principle of the filter bag stuck in the dust collector flower plate hole, its role is to play a sealing effect.
Applications:
The flower board is used with a cloth bag or rubber expansion ring according to the size of the opening on the customer's equipment, to fix the filter cartridge. Because the flower board is stepped into the device with its feet during use, it is also known as a stepped in flower board.
Specifications:
Picture number | Product material name | Product picture |
01 | Plastic flower tray top cover | |
02 | Nylon flower pan bottom cover | |
03 | Wrapping floral board | |
04 | Galvanized flower tray end cover | |
05 | Stainless steel flower tray top cover |

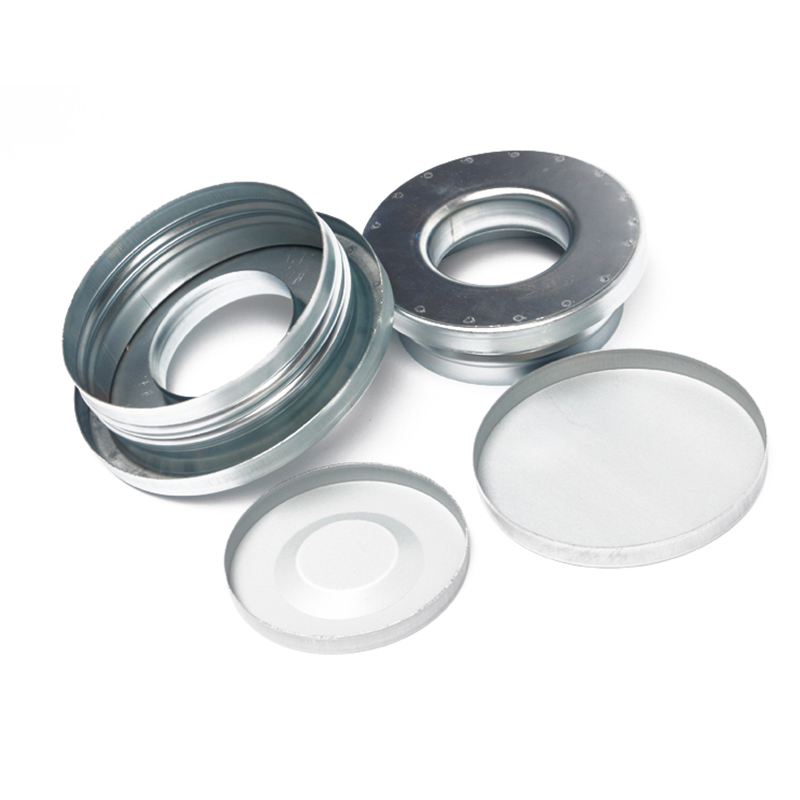

Flower board end cover combination |
Model number | Outside Diameter x Rib Mouth x Inside Diameter (unit:mm) | Diameter Of The Bar(unit:mm) | Outer diameter of bottom cover(unit:mm) |
BHA Plate Cover 125 | 142x115x65 hole | 116-117 | 110 | |
BHA Plate Cover 127 | 142x117x65 hole | 119-120 | 115 | |
BHA Plate Cover 133 | 152x122x73 hole | 125.5-126.5 | 120 | |
BHA Plate Cover 138 | 156x126x73 hole | 130-131 | 125 | |
BHA Plate Cover 143 | 156x131x80 hole | 135-136 | 130 | |
BHA Plate Cover 151 | 178x140x83 hole | 141.5-142.5 | 140 | |
BHA Plate Cover 155 | 178x145x83 hole | 146.5-147.5 | 142 | |
BHA Plate Cover 162 | 178x150x83 hole | 152.3-153 | 146 | |
BHA Plate Cover 166 | 185x153x83 hole | 156-157 | 150 | |
BHA Plate Cover 162 | 194x163x95 hole | 166-167 | 160 | |
BHA Plate Cover 206 | 232x196x105 hole | 202-203 | 196/200 |
Competitive Advantage:
Dust removal equipment can be used in different industrial fields
High quality sheet materials are used
The installation and disassembly of product accessories are simple and convenient
Long service life, strong and durable, strong corrosion resistance
Material, color ,specifications, size ,thickness can be customized.
