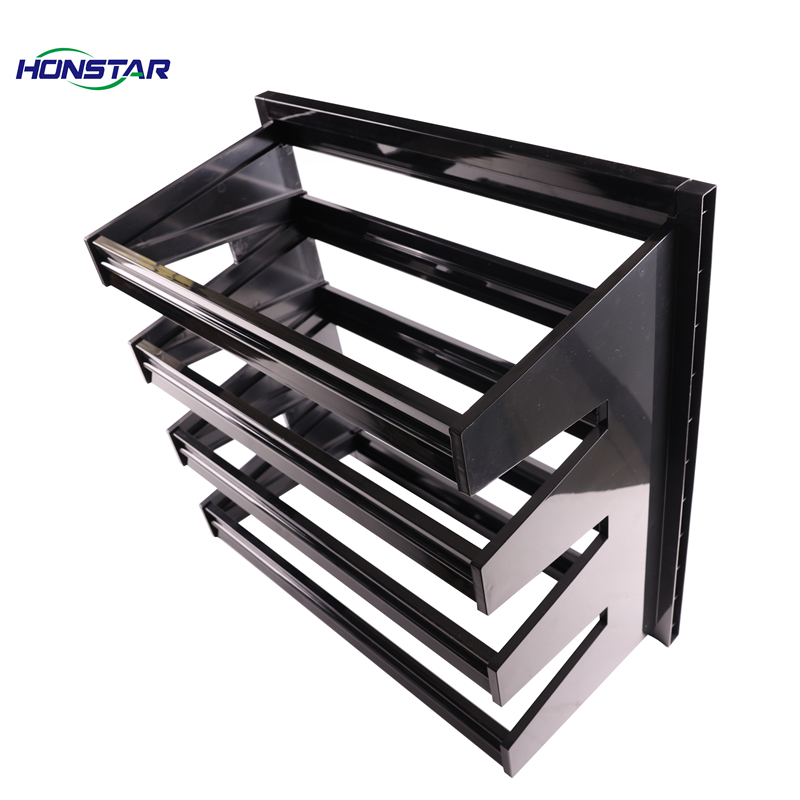

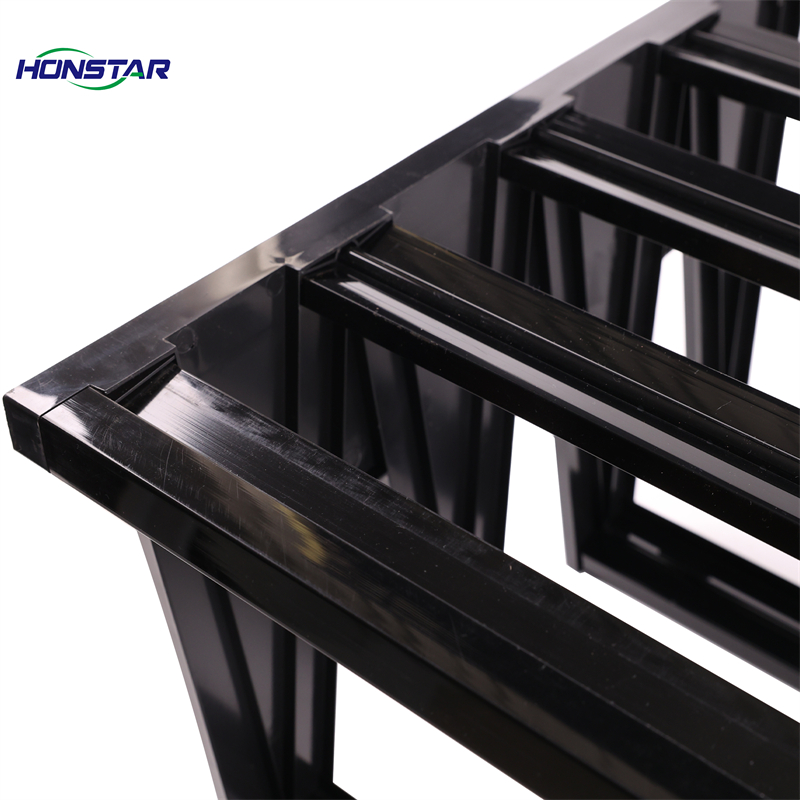

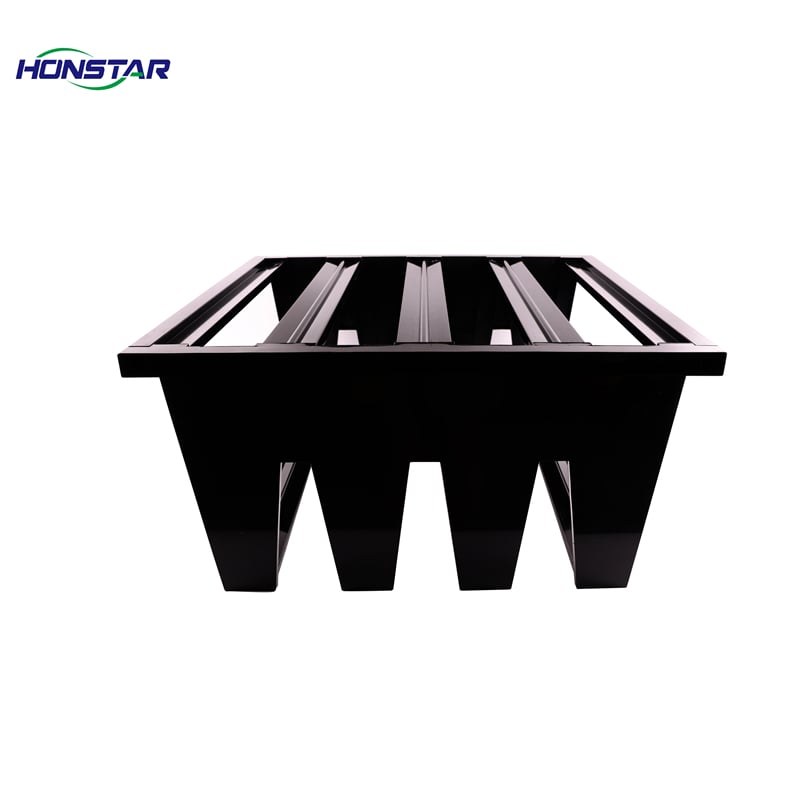

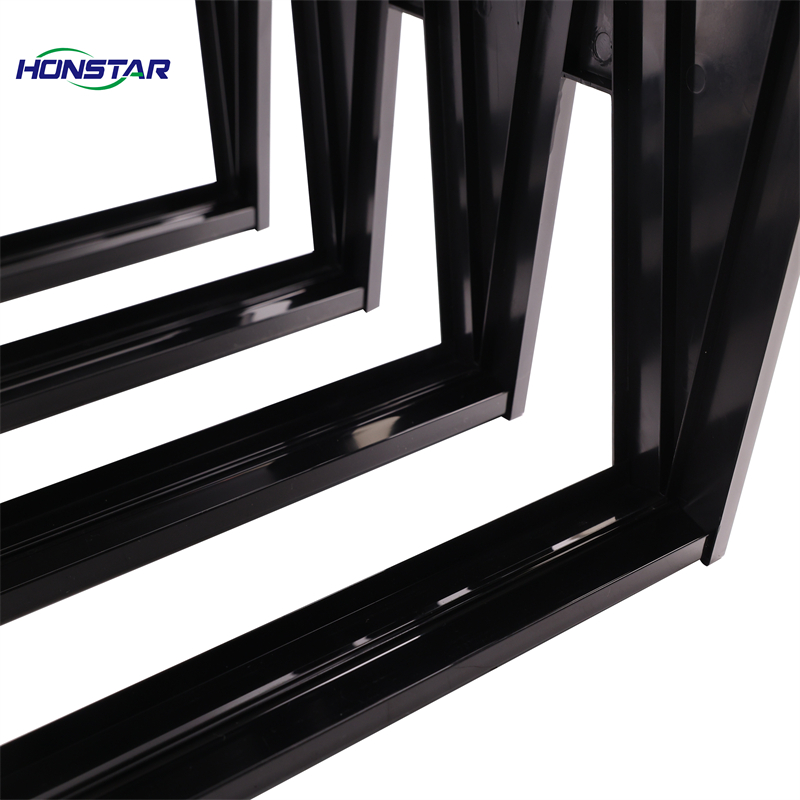

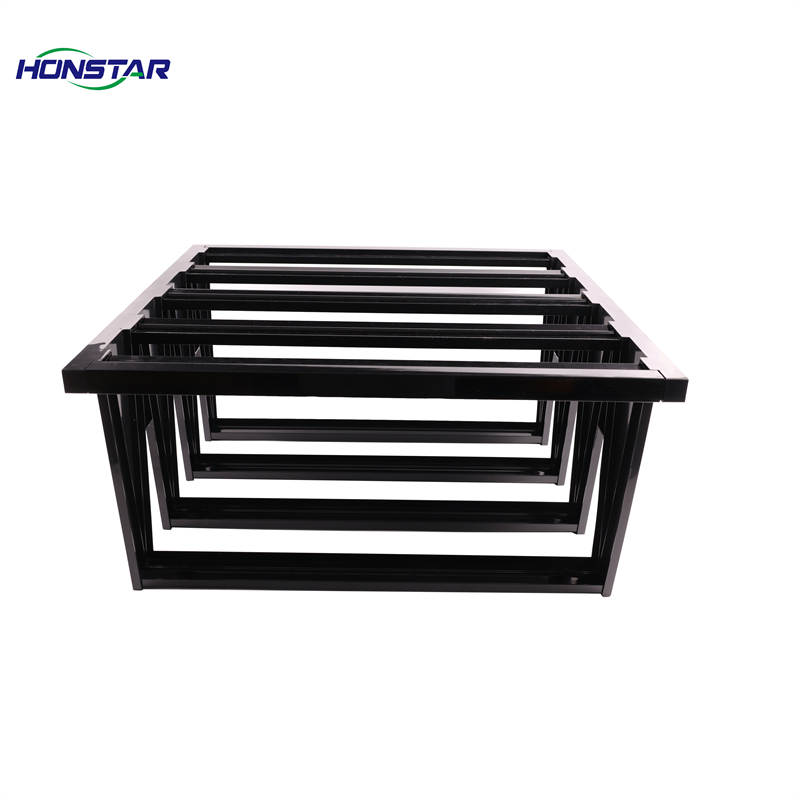

4V20mm Medium Efficiency Plastic Frame

4V20mm Medium Efficiency Plastic Frame it plays a key role in the air filtration system and is used to filter medium-sized particles in the air

  • Overview
  • Related Products
Overview

Medium effect filter is bag type medium effect filter, plate type medium effect filter, folding plate type medium effect filter, box type medium effect filter, medium effect filter bag, combined medium effect filter.

Features

(1) The main control parameters of medium efficiency filter products are rated air volume, filtration efficiency under rated air volume, initial resistance under rated air volume, dust capacity and shape size.

(2) The medium effect filter commonly used filter materials are glass fiber, non-woven fabrics and so on.

(3) The manufacturer should provide the filter dust capacity.

(4) The initial resistance of the filter shall not exceed 10% of the resistance of the product sample. After the renewable or washable filter material is recycled and cleaned, the efficiency should not be lower than 85% of the original index, and the resistance should not be higher than 115% of the original index.

(5) The air filter should meet the fire protection requirements, the paint flash point of the air filter should not be less than 163 ° C.

(6) The medium effect filter should not be used independently, should be used in combination with the coarse effect air filter.

Specification
Type Width(mm) Height(mm) Depth(mm) Material
图片1.jpg 490 592 295 ABS+PVC Strips
490 490 295
490 287 295
Application

Medium efficiency filter is mainly used in central air conditioning ventilation system intermediate filtration, pharmaceutical, hospital, electronics, food, and other industrial purification, medium efficiency filter can also be used as the front filter of efficient filtration, in order to reduce the load of efficient filtration and extend its service life; Due to the large filtration area of the medium effect air filter, its large dust capacity, high wind speed and low resistance are considered to be the best medium effect air filter structure at present.
