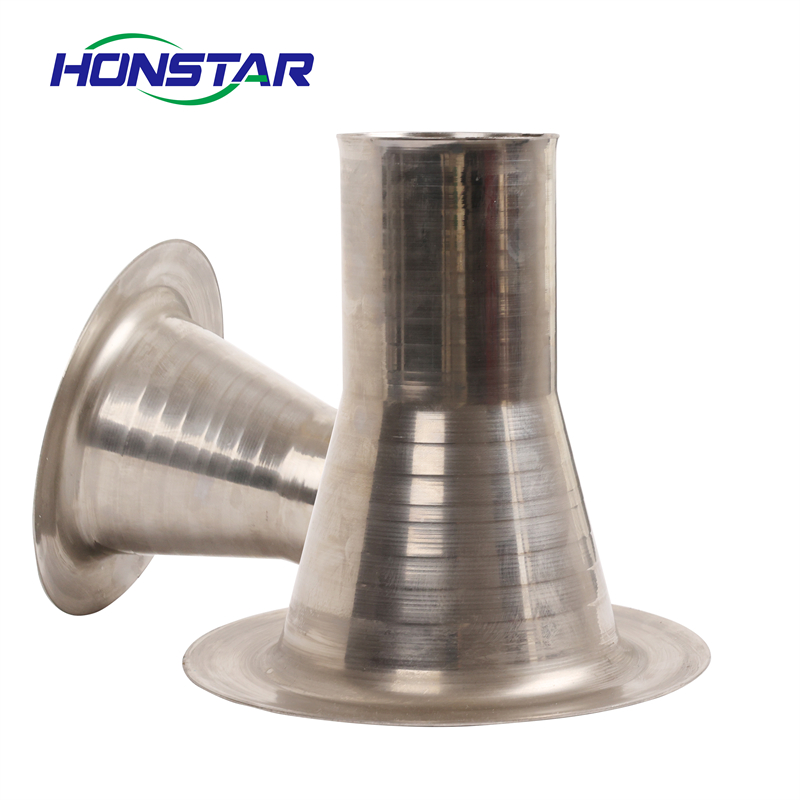

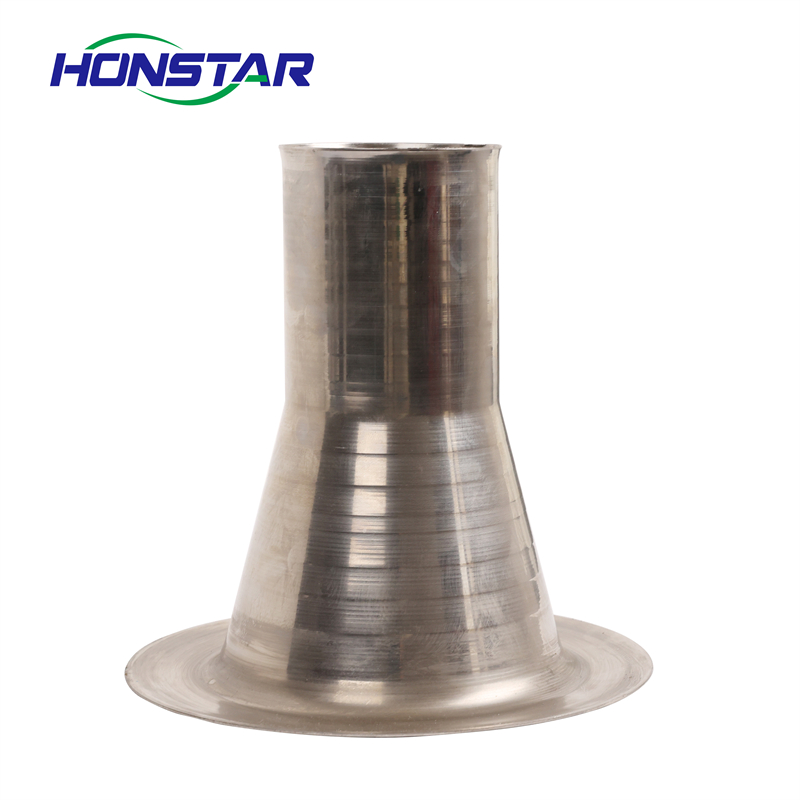

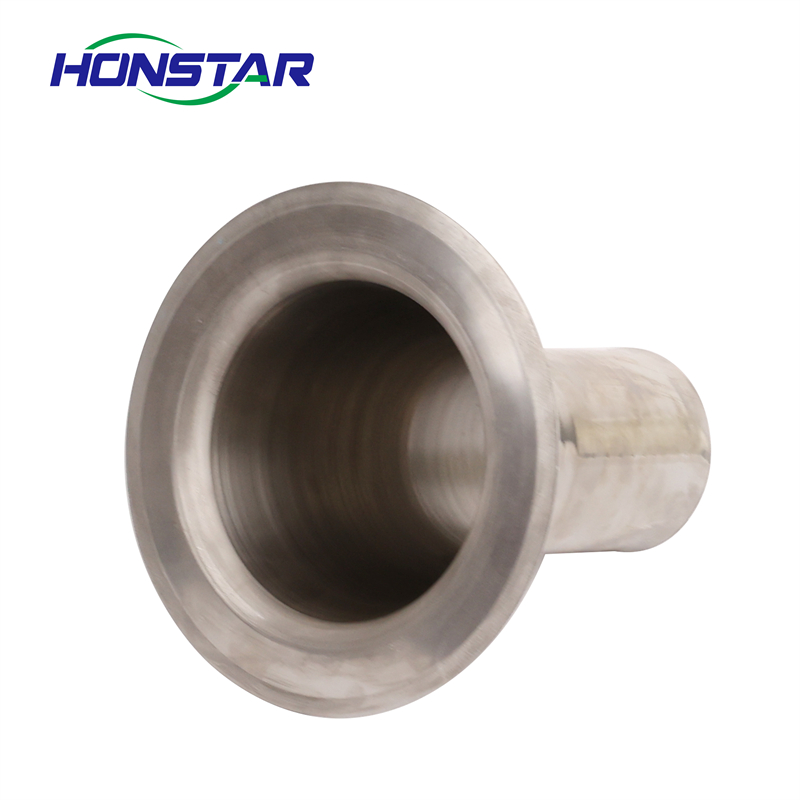

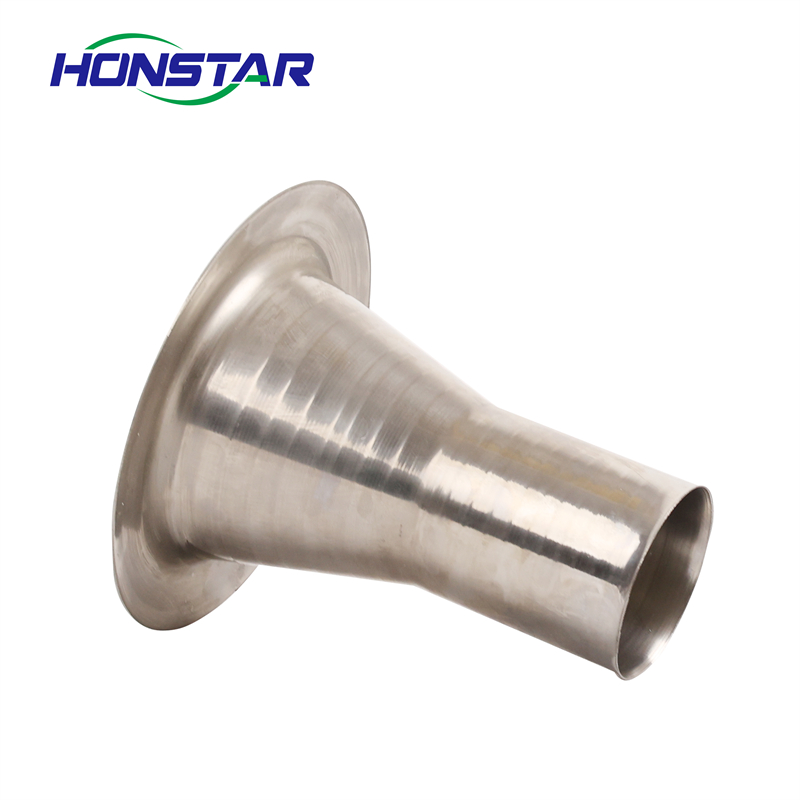

304SS Venturi Tube
Venturi tube its main function is to induce secondary air flow.It changes the air flow from coarse to fine to speed up the gas flow rate, so that the gas forms a "vacuum" area on the back side of the Venturi tube outlet
- Overview
- Related Products
Overview
Venturi tube mainly uses its ejection effect, such as dust collector, powder conveying, cooler, flowmeter, dryer and so on. The chemical industry's injection pump is also this principle, so the material mainly depends on the application place, there are iron, aluminum alloy, plastic nylon of all kinds.
Features
(1) Smooth and beautiful appearance
(2) Stable and reliable quality
(3) Easy installation and long-term maintenance
Specification
| Type | D1(mm) | D2(mm) | H(mm) | T(mm) | Material |
| Ø125 | Ø125 | Ø89 | 298 | 1.5 | 304 Stainless Steel |
| Ø170 | Ø170 | Ø89 | 72 | 1.5 | 304 Stainless Steel |
| Ø243 | Ø243 | Ø150 | 73 | 1.0 | 304 Stainless Steel |
Application
(1) Industrial Filtration
Used for filtering crude oil, lubricating oil, etc. Pharmaceutical industry filtration, filtration of raw materials, intermediates and finished products in drug production, to ensure the quality of drugs; Food and beverage industry filtration, such as filtering juice, beer, etc., to remove impurities and sediments.
(2) Environmental Protection
For example, filter dust, pollen, smoke and other particles in the air purifier to improve indoor air quality. In water treatment, it is used as a filter medium to filter suspended solids in water, some heavy metal ions and other pollutants.
(3) Automotive Industry
It is used in the fuel filter, oil filter and air filter of the car to ensure the normal operation of the car engine, filter impurities in the fuel, metal chips in the oil and dust in the air.
